Description

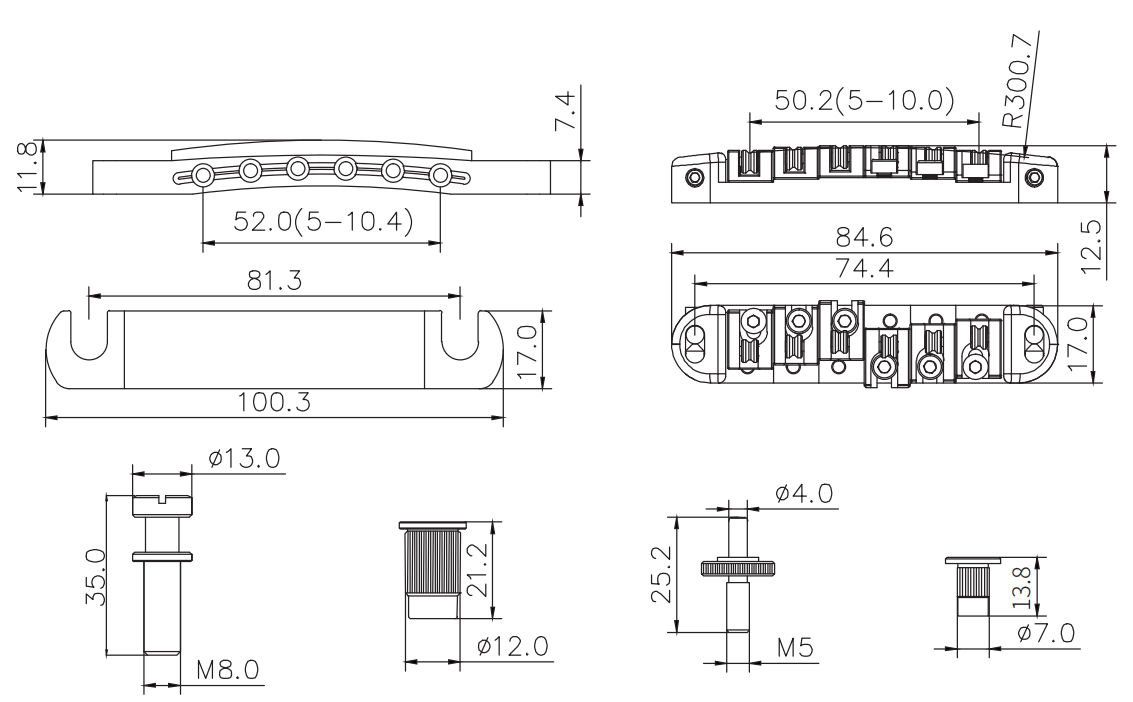

BK-4 is a Tune-o-matic and stopbar set with 10.0 mm bridge spacing (50.2 mm spread), R300.7 radius, and M5 bridge posts.
Bridge specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50.2 mm (1.976 in)
- Plate width 84.6 mm (3.331 in)
- Plate depth 17 mm (0.669 in)
- Mount pattern Radius R300.7 (~12 in); M5 thumbwheel post
- Post spacing 74.4 mm (2.929 in)
Tailpiece specs
- Plate width 100.3 mm (3.949 in)
- Plate depth 17 mm (0.669 in)
- Mount hole spacing 81.3 mm (3.201 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 12 in radius bridge
- Notched saddle bridge
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Radius R300.7 (~12 in); M5 thumbwheel post
Center-to-center distance between mounting holes on the bridge plate.
