BK-5
BK-5
Loading 3D model…
Loading 3D model…
Description

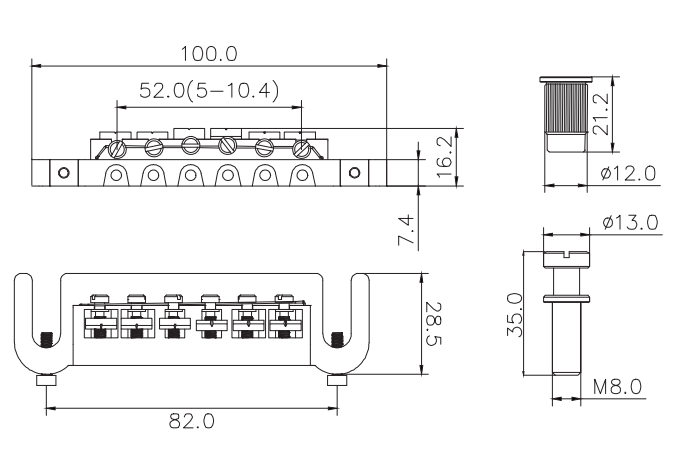

BK-5 is a 6-saddle wraparound bridge with 10.4 mm spacing (52 mm spread), 82 mm post spacing, and M8 studs with φ12 mm bushings.
Bridge specs
- String count 6-string
- String spacing 10.4 mm (0.409 in)
- String spread 52 mm (2.047 in)
- Plate width 100 mm (3.937 in)
- Plate depth 28.5 mm (1.122 in)
- Mount hole spacing 82 mm (3.228 in)
- Saddle material Zinc alloy
- Hole diameter φ12 mm (0.472 in)
- Overall height 16.2 mm (0.638 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Individual saddle wraparound
- Retaining wire across saddles
About measurements
- String spacing
-
10.4 mm (0.409 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
82 mm (3.228 in)
Center-to-center distance between mounting holes on the bridge plate.
