BK-6
BK-6
Loading 3D model…
Loading 3D model…
Description

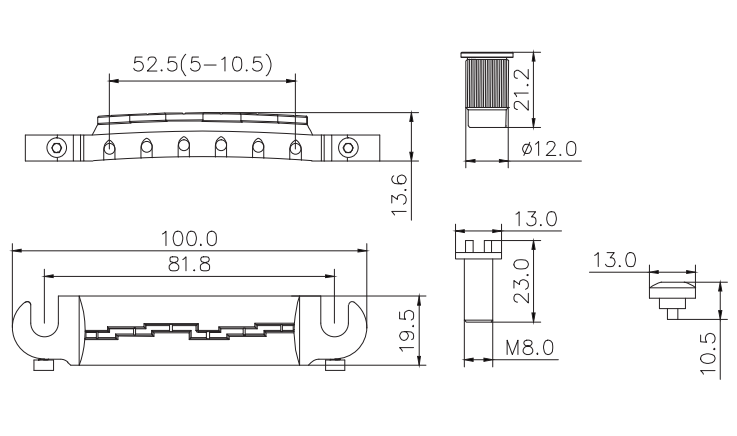

BK-6 is a compensated wraparound bridge with 10.5 mm spacing (52.5 mm spread) and 81.8 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 100 mm (3.937 in)
- Plate depth 19.5 mm (0.768 in)
- Mount hole spacing 81.8 mm (3.22 in)
- Saddle material Zinc alloy
- Overall height 13.6 mm (0.535 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Lightning-bar compensated ridge
- M8 stud mount
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
81.8 mm (3.22 in)
Center-to-center distance between mounting holes on the bridge plate.
