Description

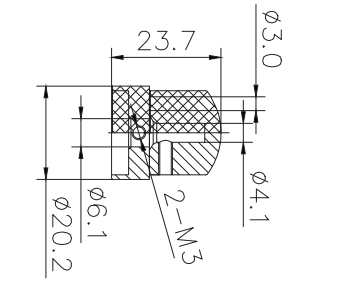

Knurled shaft adapter Φ20.2 mm × 23.7 mm with Φ6.1 / Φ4.1 / Φ3.0 mm stepped bore and 2-M3 set screws.
Knob / cap specs
- Outer diameter φ20.2 mm
- Inner diameter φ6.1 mm
- Overall height 23.7 mm (0.933 in)
- Hole diameter φ3 mm
- Thread 2-M3
- Reference Intermediate bore Φ4.1 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled stepped cylindrical profile
- Two M3 radial set-screw holes
About measurements
- Mount hole spacing
-
Intermediate bore Φ4.1 mm
Center-to-center distance between mounting holes on the bridge plate.
