Knobs
Request a quote → C-1028
C-1028
C-1028
Loading 3D model…
Loading 3D model…
Description

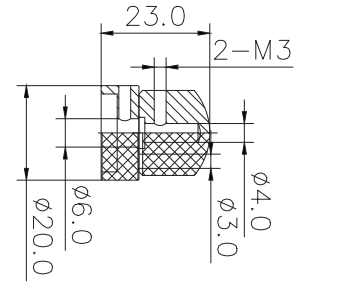

Knurled shaft adapter Φ20.0 mm × 23.0 mm with Φ6.0 / Φ4.0 / Φ3.0 mm stepped bore and 2-M3 set screws.
Knob / cap specs
- Outer diameter φ20 mm
- Inner diameter φ6 mm
- Overall height 23 mm (0.906 in)
- Hole diameter φ3 mm
- Thread 2-M3
- Reference Intermediate bore Φ4.0 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled stepped cylindrical profile with rounded tip
- Two M3 top set-screw holes
About measurements
- Mount hole spacing
-
Intermediate bore Φ4.0 mm
Center-to-center distance between mounting holes on the bridge plate.
