Description

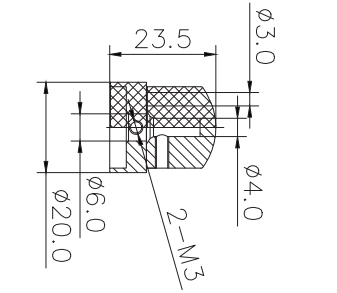

Knurled shaft adapter Φ20.0 mm × 23.5 mm with Φ6.0 / Φ4.0 / Φ3.0 mm stepped bore and 2-M3 set screws.
Knob / cap specs
- Outer diameter φ20 mm
- Inner diameter φ6 mm
- Overall height 23.5 mm (0.925 in)
- Hole diameter φ3 mm
- Thread 2-M3
- Reference Tip outer diameter Φ4.0 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled two-diameter stepped profile
- Two M3 radial set-screw holes
About measurements
- Mount hole spacing
-
Tip outer diameter Φ4.0 mm
Center-to-center distance between mounting holes on the bridge plate.
