Saddles

C

C

Request a quote →

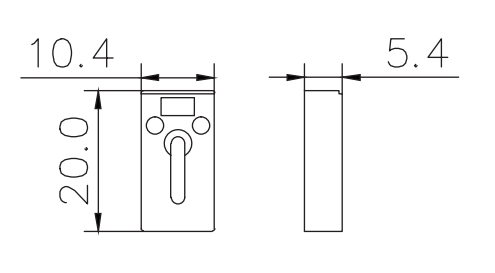

Technical drawingC

C drawing

Description

Block bridge saddle C, 20 × 10.4 × 5.4 mm with top recess, two holes, and central slot.

Bridge saddle specs

Overall width 10.4 mm (0.409 in)
Overall length 20 mm (0.787 in)
Body height 5.4 mm (0.213 in)

Hardware

Material Steel / brass (standard)
Adjustment N/A
Finish More colors — see matching swatches

Features

Top rectangular recess
Two circular holes below recess
Central vertical stadium slot
Top-right corner notch in side profile
