Saddles

E

E

Request a quote →

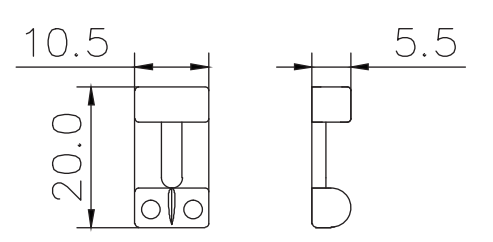

Technical drawingE

E drawing

Description

Block bridge saddle E, 20 × 10.5 × 5.5 mm with central slot and two bottom mounting holes.

Bridge saddle specs

Overall width 10.5 mm (0.413 in)
Overall length 20 mm (0.787 in)
Body height 5.5 mm (0.217 in)

Hardware

Material Steel / brass (standard)
Adjustment N/A
Finish More colors — see matching swatches

Features

Central longitudinal slot
Two bottom holes flanking pointed bottom indentation
Recessed middle section in side profile
