Saddles
Request a quote → D
D

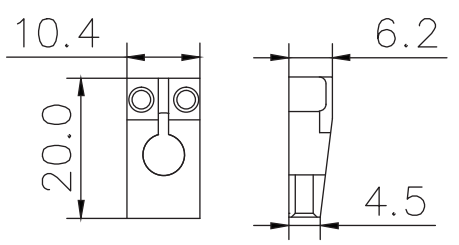

Technical drawingD
Description
Block bridge saddle D, 20 × 10.4 mm with tapered profile (6.2 mm top / 4.5 mm bottom thickness).
Bridge saddle specs
- Overall width 10.4 mm (0.409 in)
- Overall length 20 mm (0.787 in)
- Body height 6.2 mm (0.244 in)
- Reference Bottom thickness 4.5 mm per side-profile view (D.png).
Hardware
- Material Steel / brass (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered side profile (6.2 mm top, 4.5 mm bottom)
- Central circular cutout with vertical slot
- Two top mounting holes
About measurements
- Mount hole spacing
-
Bottom thickness 4.5 mm per side-profile view (D.png).
Center-to-center distance between mounting holes on the bridge plate.
