Truss rod cover
Request a quote → HA-1005
HA-1005

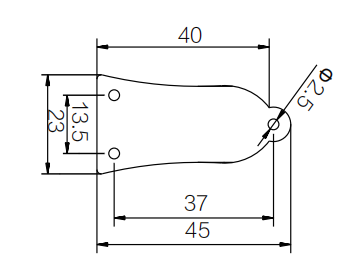

Technical drawingHA-1005
Description
HA-1005 truss rod cover, 45 × 23 mm bell profile, φ2.5 mm 3-hole mount.
Headstock plate specs
- Overall width 23 mm (0.906 in)
- Bottom width 23 mm (0.906 in)
- Overall length 45 mm (1.772 in)
- Hole diameter φ2.5 mm
- Mount spacing 13.5 mm (0.531 in)
- Reference Base hole pair on 13.5 mm centers; tip hole center 37 mm from base hole centerline (40 mm from bottom edge).
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell profile 45 mm long × 23 mm base
- φ2.5 mm holes on 13.5 mm / 37 mm 3-hole layout
About measurements
- Mount hole spacing
-
13.5 mm (0.531 in)
Center-to-center distance between mounting holes on the bridge plate.
