Truss rod cover
Request a quote → HA-1008
HA-1008

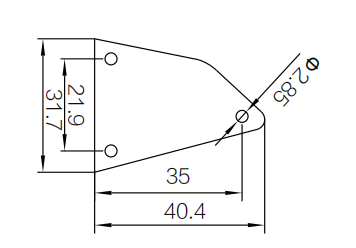

Technical drawingHA-1008
Description
HA-1008 truss rod cover, 40.4 × 31.7 mm tapered plate, φ2.85 mm 3-hole mount.
Headstock plate specs
- Overall width 31.7 mm (1.248 in)
- Bottom width 31.7 mm (1.248 in)
- Overall length 40.4 mm (1.591 in)
- Hole diameter φ2.85 mm
- Mount spacing 21.9 mm (0.862 in)
- Reference Left-edge hole pair on 21.9 mm centers; tip hole center 35 mm from base edge.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered profile 40.4 mm long × 31.7 mm straight edge
- φ2.85 mm holes on 21.9 mm / 35 mm 3-hole layout
About measurements
- Mount hole spacing
-
21.9 mm (0.862 in)
Center-to-center distance between mounting holes on the bridge plate.
