Truss rod cover
Request a quote → HA-1009
HA-1009

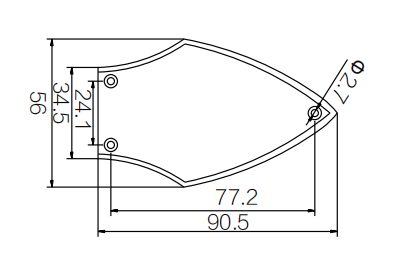

Technical drawingHA-1009
Description
HA-1009 headstock plate, 90.5 × 56 mm shield profile (34.5 mm flat edge), φ2.7 mm 3-hole mount.
Headstock plate specs
- Overall width 56 mm (2.205 in)
- Bottom width 34.5 mm (1.358 in)
- Overall length 90.5 mm (3.563 in)
- Hole diameter φ2.7 mm
- Mount spacing 24.1 mm (0.949 in)
- Reference Left-edge hole pair on 24.1 mm centers; tip hole center 77.2 mm from left hole axis.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Shield profile 90.5 mm long × 56 mm max height, 34.5 mm flat edge
- φ2.7 mm holes on 24.1 mm / 77.2 mm 3-hole layout
About measurements
- Mount hole spacing
-
24.1 mm (0.949 in)
Center-to-center distance between mounting holes on the bridge plate.
