Truss rod cover
Request a quote → HA-2009
HA-2009

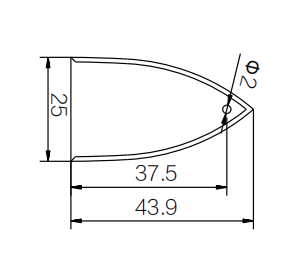

Technical drawingHA-2009
Description
HA-2009 truss rod cover, 43.9 × 25 mm teardrop profile, single φ2 mm mount.
Headstock plate specs
- Overall width 25 mm (0.984 in)
- Bottom width 25 mm (0.984 in)
- Overall length 43.9 mm (1.728 in)
- Hole diameter φ2 mm
- Reference Single φ2 mm hole, center 37.5 mm from bottom edge.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Teardrop profile 43.9 mm long × 25 mm flat base
- Single φ2 mm mounting hole 37.5 mm from bottom edge
About measurements
- Mount hole spacing
-
Single φ2 mm hole, center 37.5 mm from bottom edge.
Center-to-center distance between mounting holes on the bridge plate.
