HC-1021
Technical drawingHC-1021
Description

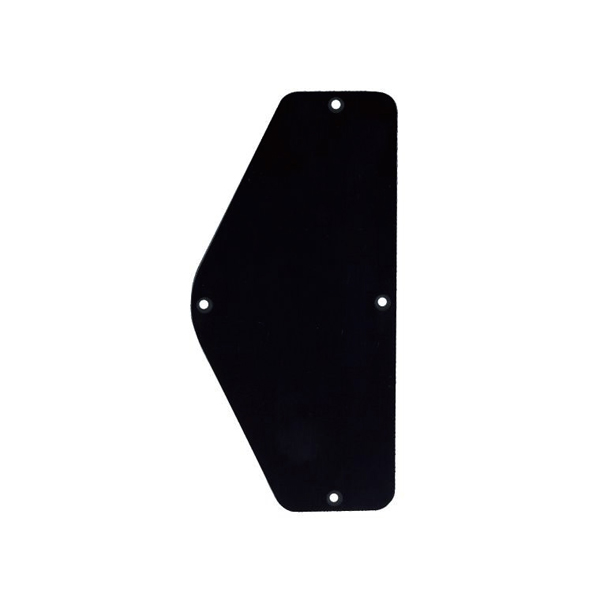

HC-1021 control plate, 140 × 67.9 mm peaked-end plate, φ3 mm 4-hole mount.
Control plate specs
- Overall width 140 mm (5.512 in)
- Overall length 67.9 mm (2.673 in)
- Hole diameter φ3 mm
- Reference Four perimeter mounting holes at peak, bottom, and side centers.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Peaked-end pentagonal outline 140 mm × 67.9 mm
- Four φ3 mm mounting holes
About measurements
- Mount hole spacing
-
Four perimeter mounting holes at peak, bottom, and side centers.
Center-to-center distance between mounting holes on the bridge plate.
