HC-1024

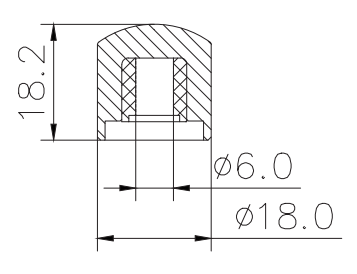

Technical drawingHC-1024
Description
HC-1024 domed knob, φ18.0 mm × 18.2 mm tall, φ6.0 mm bore.
Control plate specs
- Outer diameter φ18 mm
- Body height 18.2 mm (0.717 in)
- Hole diameter φ6 mm
- Reference Cross-section drawing; domed cylindrical knob with φ6.0 mm shaft bore.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Domed cylindrical profile φ18.0 mm
- φ6.0 mm central shaft bore
About measurements
- Mount hole spacing
-
Cross-section drawing; domed cylindrical knob with φ6.0 mm shaft bore.
Center-to-center distance between mounting holes on the bridge plate.
