HC-1023

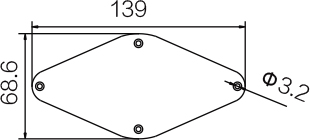

Technical drawingHC-1023
Description
HC-1023 control plate, 139 × 68.6 mm diamond plate, φ3.2 mm 4-hole mount.
Control plate specs
- Overall width 139 mm (5.472 in)
- Overall length 68.6 mm (2.701 in)
- Hole diameter φ3.2 mm
- Reference Four mounting holes at cardinal points (center-to-center spacing not dimensioned on drawing).
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Elongated diamond outline 139 mm × 68.6 mm
- Four φ3.2 mm mounting holes at points
About measurements
- Mount hole spacing
-
Four mounting holes at cardinal points (center-to-center spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
