Control Plates
Request a quote → HJ-1008
HJ-1008
HJ-1008
Loading 3D model…
Loading 3D model…
Description

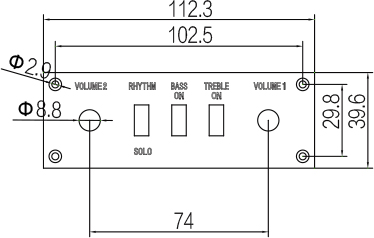

HJ-1008 Hofner-style bass control plate, 112.3 × 39.6 mm with two φ8.8 mm volume holes and three switch slots.
Control plate specs
- Overall width 112.3 mm (4.421 in)
- Overall length 39.6 mm (1.559 in)
- Hole diameter φ8.8 mm
- Mount spacing 102.5 mm (4.035 in)
- Reference Corner mount holes φ2.9 mm on 102.5 × 29.8 mm pattern; volume holes on 74 mm centers.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
102.5 mm (4.035 in)
Center-to-center distance between mounting holes on the bridge plate.
