HJ-1009
HJ-1009
Loading 3D model…
Loading 3D model…
Description

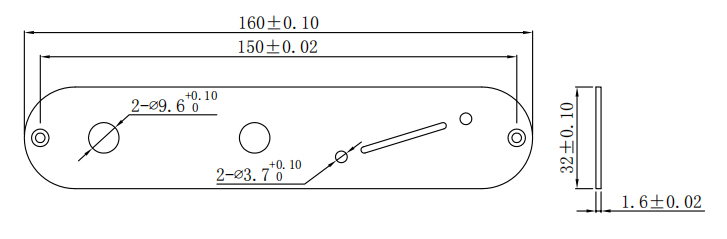

HJ-1009 Tele control plate, 160 × 32 mm, 1.6 mm thick, with φ9.6 mm pot holes and 150 mm mount spacing.
Control plate specs
- Overall width 160 mm (6.299 in)
- Overall length 32 mm (1.26 in)
- Body height 1.6 mm (0.063 in)
- Hole diameter φ9.6 mm
- Mount spacing 150 mm (5.906 in)
- Reference Switch mounting holes φ3.7 mm flanking diagonal slot.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
150 mm (5.906 in)
Center-to-center distance between mounting holes on the bridge plate.
