HZ-03
HZ-03
Loading 3D model…
Loading 3D model…
Description

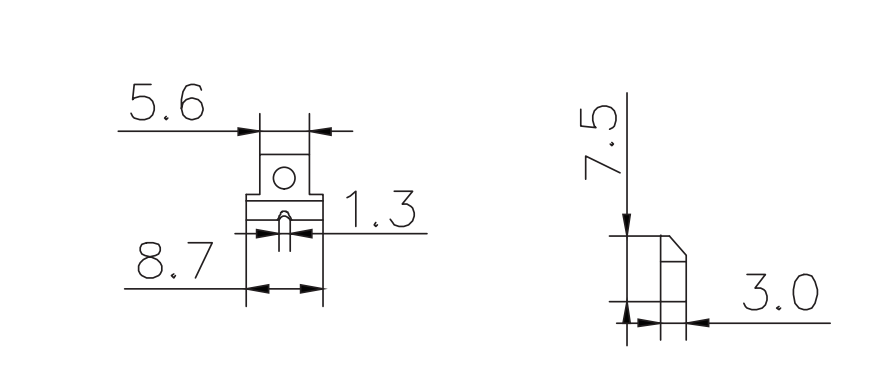

HZ-03 tremolo hardware string retainer, 8.7 mm wide × 7.5 mm tall, 3.0 mm thick.
Tremolo hardware specs
- Overall width 8.7 mm (0.343 in)
- Thickness 3 mm (0.118 in)
- Overall height 7.5 mm (0.295 in)
- Reference Single mounting hole (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- 5.6 mm upper tab with 1.3 mm bottom notch
- Beveled top profile on 3.0 mm-thick base
About measurements
- Mount hole spacing
-
Single mounting hole (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
