Description

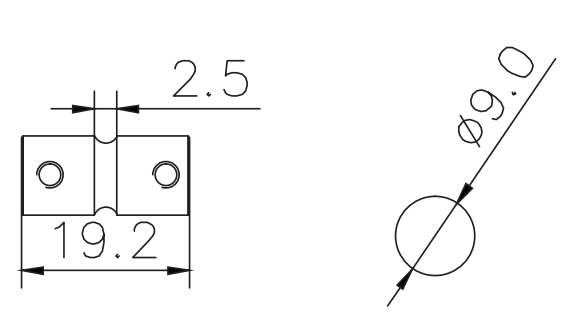

HZ-27 tremolo hardware string retainer, 19.2 mm wide, φ9.0 mm cylindrical body.
Tremolo hardware specs
- Overall width 19.2 mm (0.756 in)
- Thickness 9 mm (0.354 in)
- Overall height 9 mm (0.354 in)
- Reference Two mounting holes (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- 2.5 mm central string-guide notch
- φ9.0 mm cylindrical body with dual side holes
About measurements
- Mount hole spacing
-
Two mounting holes (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
