Request a quote → HZ-31
HZ-31
HZ-31
Loading 3D model…
Loading 3D model…
Description

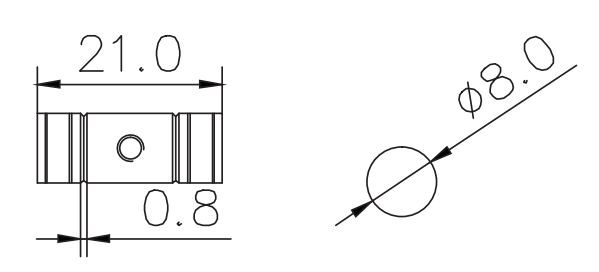

HZ-31 tremolo hardware cylindrical retainer, 21.0 mm long × φ8.0 mm body.
Tremolo hardware specs
- Overall width 21 mm (0.827 in)
- Thickness 8 mm (0.315 in)
- Overall height 8 mm (0.315 in)
- Reference Central through-hole (diameter not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- 0.8 mm wide grooves near each end
- φ8.0 mm cylindrical body with central bore
About measurements
- Mount hole spacing
-
Central through-hole (diameter not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
