HZ-34

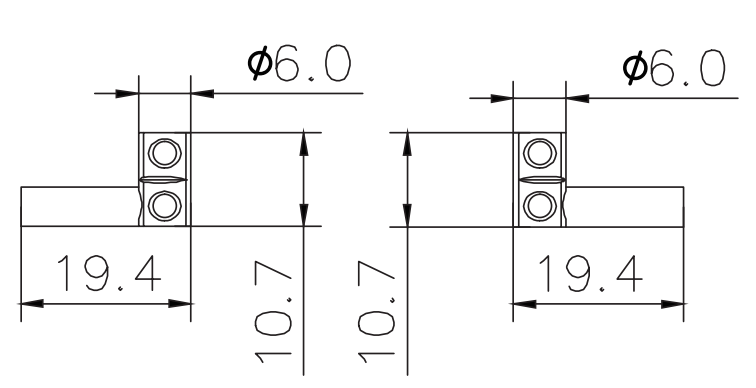

Technical drawingHZ-34
Description
HZ-34 tremolo hardware string retainer pair, 19.4 mm wide × 10.7 mm tall, φ6.0 mm holes.
Tremolo hardware specs
- Overall width 19.4 mm (0.764 in)
- Overall height 10.7 mm (0.421 in)
- Hole diameter φ6 mm
- Reference Two φ6.0 mm holes in raised block (center-to-center spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Mirrored left/right pair with raised dual-hole block
- 10.7 mm tall mounting block on horizontal base
About measurements
- Mount hole spacing
-
Two φ6.0 mm holes in raised block (center-to-center spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
