Request a quote → HZ-36
HZ-36
HZ-36
Loading 3D model…
Loading 3D model…
Description

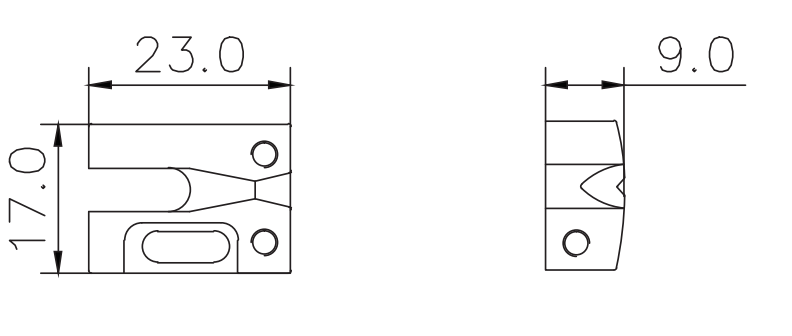

HZ-36 tremolo hardware string retainer block, 23.0 mm wide × 17.0 mm tall, 9.0 mm thick.
Tremolo hardware specs
- Overall width 23 mm (0.906 in)
- Thickness 9 mm (0.354 in)
- Overall height 17 mm (0.669 in)
- Reference Two side mounting holes (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Horizontal U-slot with tapered internal channel
- Oval bottom recess and dual side mounting holes
About measurements
- Mount hole spacing
-
Two side mounting holes (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
