HZ-46
HZ-46
Loading 3D model…
Loading 3D model…
Description

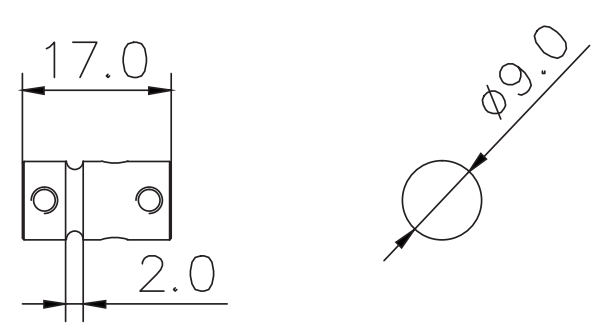

HZ-46 is tremolo hardware cylindrical retainer, 17.0 mm length, φ9.0 mm diameter, with 2.0 mm center groove.
Tremolo hardware specs
- Overall width 17 mm (0.669 in)
- Thickness 9 mm (0.354 in)
- Overall height 9 mm (0.354 in)
- Reference Two side holes indicated in profile (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Cylindrical body φ9.0 mm with 17.0 mm overall length
- Circumferential center groove 2.0 mm wide
About measurements
- Mount hole spacing
-
Two side holes indicated in profile (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
