HZ-55
HZ-55
Loading 3D model…
Loading 3D model…
Description

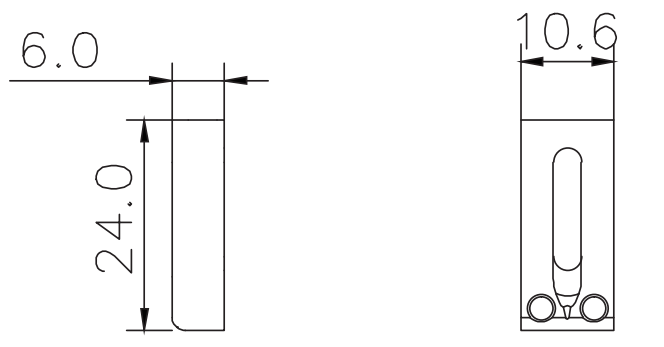

HZ-55 is tremolo hardware bridge saddle with 10.6 mm width, 24.0 mm height, and 6.0 mm body depth.
Tremolo hardware specs
- Overall width 10.6 mm (0.417 in)
- Thickness 6 mm (0.236 in)
- Overall height 24 mm (0.945 in)
- Reference Two bottom screw holes shown inside the central slot (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Long vertical center slot with rounded ends and a pointed guide at the base
- Rounded lower-left corner on the 24.0 mm-tall side profile
About measurements
- Mount hole spacing
-
Two bottom screw holes shown inside the central slot (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
