Saddles
Request a quote → HZ-61
HZ-61
HZ-61
Loading 3D model…
Loading 3D model…
Description

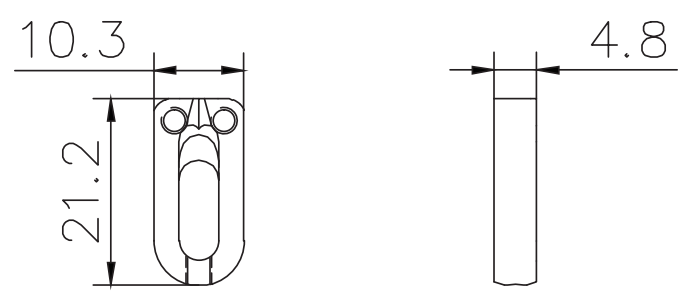

HZ-61 is tremolo hardware bridge saddle with 10.3 mm width, 21.2 mm height, and 4.8 mm body depth.
Tremolo hardware specs
- Overall width 10.3 mm (0.406 in)
- Thickness 4.8 mm (0.189 in)
- Overall height 21.2 mm (0.835 in)
- Reference Two top adjustment holes shown (diameter and spacing not dimensioned on drawing).
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Semi-circular rounded bottom with flat top edge
- Central longitudinal string slot with 4.8 mm uniform side thickness
About measurements
- Mount hole spacing
-
Two top adjustment holes shown (diameter and spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
