Description

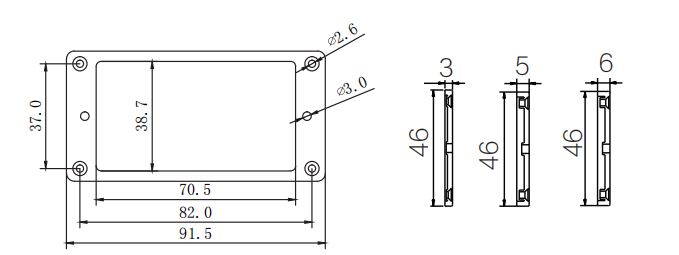

J-1001 is a humbucker pickup ring with 91.5 × 46 mm plate, 5 mm flat thickness, φ2.6 mm corner mount holes on 82.0 mm spacing.
Pickup ring specs
- Overall width 91.5 mm (3.602 in)
- Overall height 46 mm (1.811 in)
- Ring thickness 5 mm (0.197 in)
- Hole diameter φ2.6 mm
- Mount spacing 82 mm (3.228 in)
- Reference Corner mounting holes on 82.0 mm × 37.0 mm centers; side adjustment holes φ3.0 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flat-bottom humbucker pickup ring
- 70.5 mm × 38.7 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
82 mm (3.228 in)
Center-to-center distance between mounting holes on the bridge plate.
