J-1002
J-1002
Loading 3D model…
Loading 3D model…
Description

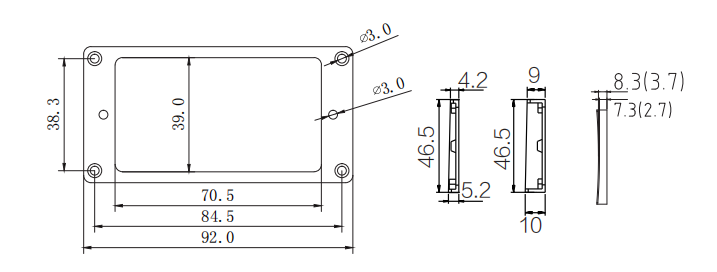

J-1002 is a humbucker pickup ring with 92.0 × 46.5 mm plate, curved bottom for arched tops, slanted 9.0–10.0 mm height, φ3.0 mm mount holes on 84.5 mm spacing.
Pickup ring specs
- Overall width 92 mm (3.622 in)
- Overall height 46.5 mm (1.831 in)
- Ring thickness 10 mm (0.394 in)
- Hole diameter φ3 mm
- Mount spacing 84.5 mm (3.327 in)
- Reference Corner mounting holes on 84.5 mm × 38.3 mm centers; side adjustment holes φ3.0 mm; slanted profile 9.0–10.0 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Curved bottom for arched-top guitars
- 70.5 mm × 39.0 mm inner cutout
- Slanted bridge-position profile 9.0–10.0 mm
About measurements
- Mount hole spacing
-
84.5 mm (3.327 in)
Center-to-center distance between mounting holes on the bridge plate.
