Description

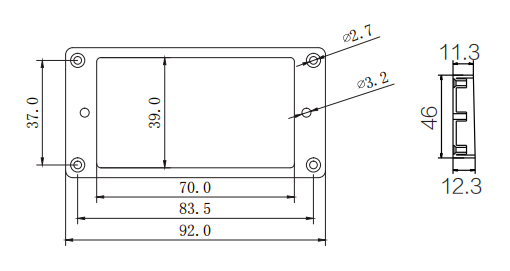

J-1004 is a humbucker pickup ring with 92.0 × 46 mm plate, slanted 11.3–12.3 mm height, φ2.7 mm corner mount holes on 83.5 mm spacing.
Pickup ring specs
- Overall width 92 mm (3.622 in)
- Overall height 46 mm (1.811 in)
- Ring thickness 12.3 mm (0.484 in)
- Hole diameter φ2.7 mm
- Mount spacing 83.5 mm (3.287 in)
- Reference Corner mounting holes on 83.5 mm × 37.0 mm centers; side adjustment holes φ3.2 mm; slanted profile 11.3–12.3 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Slanted humbucker pickup ring
- 70.0 mm × 39.0 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
83.5 mm (3.287 in)
Center-to-center distance between mounting holes on the bridge plate.
