J-3002
J-3002
Loading 3D model…
Loading 3D model…
Description

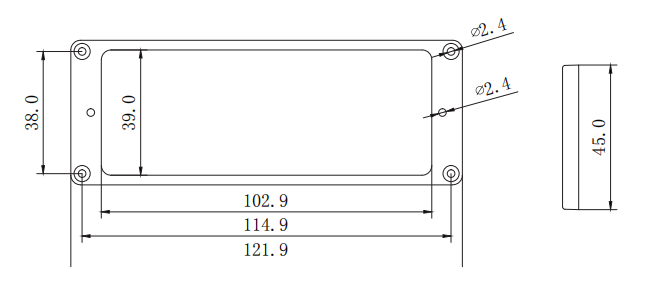

J-3002 is a soapbar pickup ring with 121.9 × 45.0 mm plate, φ2.4 mm mount holes on 114.9 mm spacing.
Pickup ring specs
- Overall width 121.9 mm (4.799 in)
- Overall height 45 mm (1.772 in)
- Hole diameter φ2.4 mm
- Mount spacing 114.9 mm (4.524 in)
- Reference Corner mounting holes on 114.9 mm × 38.0 mm centers; side adjustment holes φ2.4 mm; thickness not dimensioned on drawing.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Soapbar pickup ring
- 102.9 mm × 39.0 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
114.9 mm (4.524 in)
Center-to-center distance between mounting holes on the bridge plate.
