Description

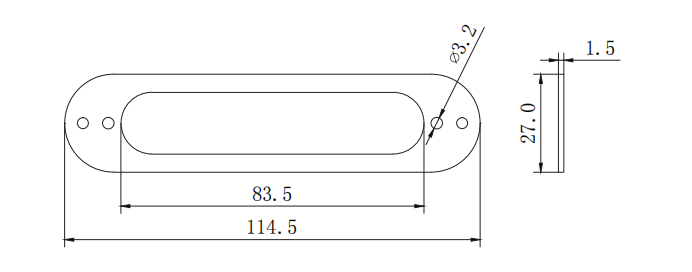

J-3005 is an iron pickup ring with 114.5 × 27.0 mm plate, 1.5 mm flat thickness, φ3.2 mm mount holes.
Pickup ring specs
- Overall width 114.5 mm (4.508 in)
- Overall height 27 mm (1.063 in)
- Ring thickness 1.5 mm (0.059 in)
- Hole diameter φ3.2 mm
- Reference Four φ3.2 mm mounting holes; hole center spacing not dimensioned on drawing.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Iron pickup ring with stadium outline
- 83.5 mm inner cutout length
- Four mounting holes in left and right pairs
About measurements
- Mount hole spacing
-
Four φ3.2 mm mounting holes; hole center spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
