J-3004
J-3004
Loading 3D model…
Loading 3D model…
Description

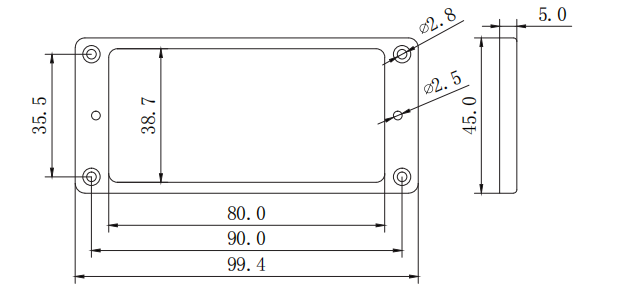

J-3004 is a soapbar pickup ring with 99.4 × 45.0 mm plate, 5 mm flat thickness, φ2.8 mm corner mount holes on 90.0 mm spacing.
Pickup ring specs
- Overall width 99.4 mm (3.913 in)
- Overall height 45 mm (1.772 in)
- Ring thickness 5 mm (0.197 in)
- Hole diameter φ2.8 mm
- Mount spacing 90 mm (3.543 in)
- Reference Corner mounting holes on 90.0 mm × 35.5 mm centers; side adjustment holes φ2.5 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flat-bottom soapbar pickup ring
- 80.0 mm × 38.7 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
90 mm (3.543 in)
Center-to-center distance between mounting holes on the bridge plate.
