KA-1011
KA-1011
Loading 3D model…
Loading 3D model…
Description

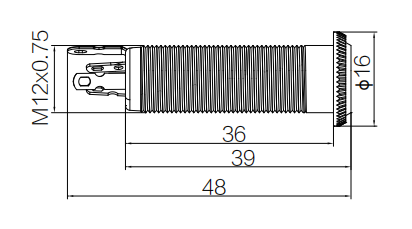

KA-1011 long-barrel stereo jack M12 × 0.75, φ16 mm knurled flange, 48 mm overall, three terminals.
Output jack specs
- Outer diameter φ16 mm
- Overall length 48 mm (1.89 in)
- Body height 39 mm (1.535 in)
- Thread M12 × 0.75
- Reference Threaded barrel 36 mm; three solder lugs (TRS / battery-switch capable).
Hardware
- Material Brass / nickel-plated steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Stereo TRS barrel jack
- Three solder lugs
About measurements
- Mount hole spacing
-
Threaded barrel 36 mm; three solder lugs (TRS / battery-switch capable).
Center-to-center distance between mounting holes on the bridge plate.
