Description

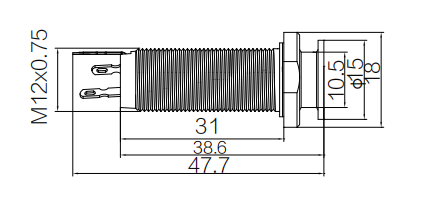

KA-1012 barrel jack M12 × 0.75, φ18 mm head with φ15 inner flange and 10.5 mm opening, 47.7 mm overall.
Output jack specs
- Outer diameter φ18 mm
- Overall length 47.7 mm (1.878 in)
- Body height 38.6 mm (1.52 in)
- Hole diameter φ10.5 mm
- Thread M12 × 0.75
- Reference Inner flange φ15 mm; threaded barrel 31 mm; three solder terminals.
Hardware
- Material Brass / nickel-plated steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Hex nut mounting head
- Three solder lugs
About measurements
- Mount hole spacing
-
Inner flange φ15 mm; threaded barrel 31 mm; three solder terminals.
Center-to-center distance between mounting holes on the bridge plate.
