Description

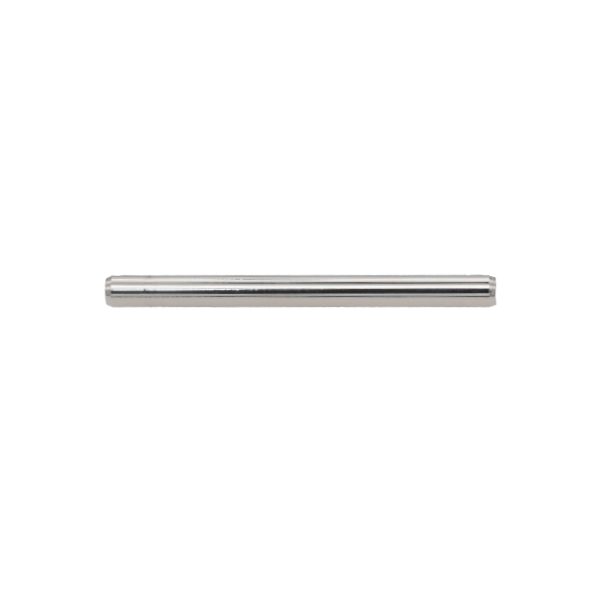

Cylindrical locating pin Φ6.35 mm × 76 mm with chamfered ends.
Hardware part specs
- Outer diameter φ6.35 mm
- Overall length 76 mm (2.992 in)
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Φ6.35 mm hardened pin
