Locking Nuts
Request a quote → KB-2001

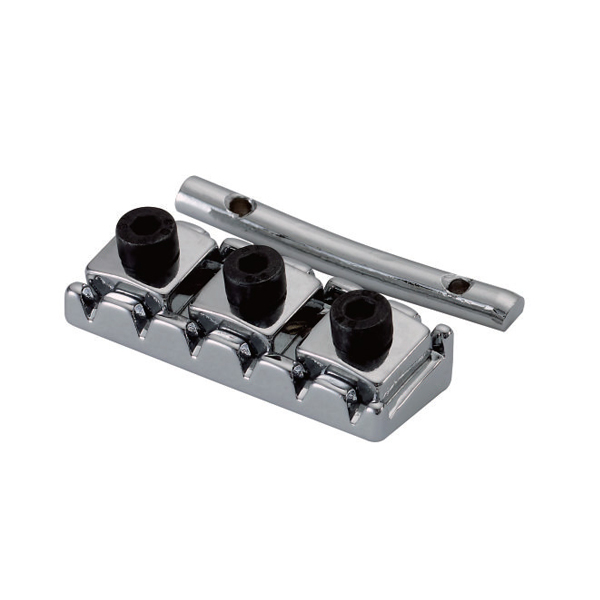

KB-2001
KB-2001
Loading 3D model…
Loading 3D model…
Description

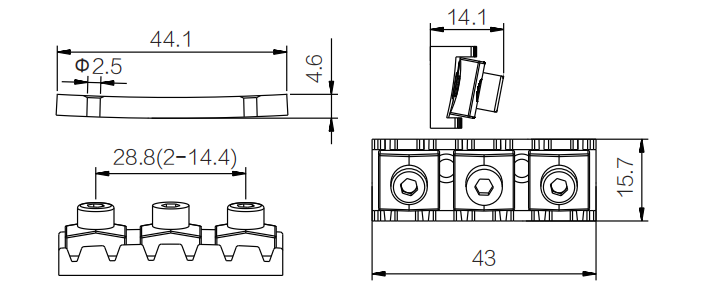

Bridge assembly 44.1 × 15.7 mm, base height 4.6 mm, overall height 14.1 mm, Φ2.5 hole, 28.8 mm mount spacing.
Hardware part specs
- Overall width 44.1 mm (1.736 in)
- Overall length 15.7 mm (0.618 in)
- Body height 4.6 mm (0.181 in)
- Overall height 14.1 mm (0.555 in)
- Hole diameter φ2.5 mm
- Mount spacing 28.8 mm (1.134 in)
- Reference 2×14.4 mm hole pattern; body length 43 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Multi-part bridge assembly
About measurements
- Mount hole spacing
-
28.8 mm (1.134 in)
Center-to-center distance between mounting holes on the bridge plate.
