Description

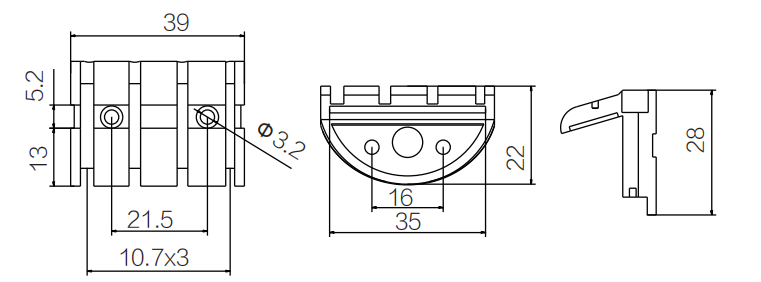

Bridge assembly 39 × 18.2 mm, body height 22 mm, overall height 28 mm, Φ3.2 holes.
Hardware part specs
- Overall width 39 mm (1.535 in)
- Overall length 18.2 mm (0.717 in)
- Body height 22 mm (0.866 in)
- Overall height 28 mm (1.102 in)
- Hole diameter φ3.2 mm
- Mount spacing 21.5 mm (0.846 in)
- Reference Front face width 35 mm; hole pattern 10.7×3; face spacing 16 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Front-face string routing
About measurements
- Mount hole spacing
-
21.5 mm (0.846 in)
Center-to-center distance between mounting holes on the bridge plate.
