KB-2002
KB-2002
Loading 3D model…
Loading 3D model…
Description

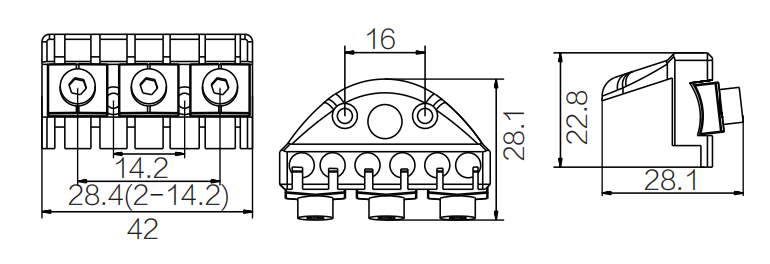

Bridge assembly 42 × 28.1 mm, body height 22.8 mm, overall height 28.1 mm, screw spacing 28.4 mm.
Hardware part specs
- Overall width 42 mm (1.654 in)
- Overall length 28.1 mm (1.106 in)
- Body height 22.8 mm (0.898 in)
- Overall height 28.1 mm (1.106 in)
- Mount spacing 28.4 mm (1.118 in)
- Reference 2×14.2 mm screw pattern
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tall bridge housing
About measurements
- Mount hole spacing
-
28.4 mm (1.118 in)
Center-to-center distance between mounting holes on the bridge plate.
