Locking Nuts
Request a quote → KB-2003
KB-2003
KB-2003
Loading 3D model…
Loading 3D model…
Description

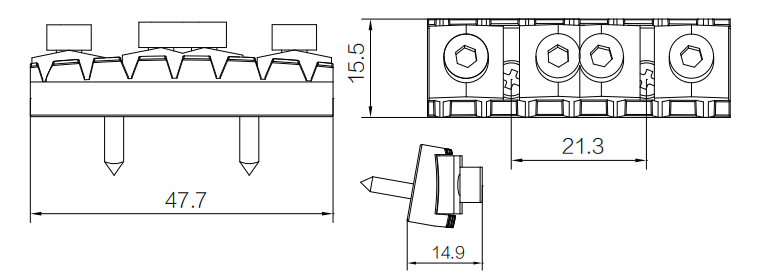

Bridge assembly 47.7 × 15.5 mm, height 14.9 mm, screw spacing 21.3 mm.
Hardware part specs
- Overall width 47.7 mm (1.878 in)
- Overall length 15.5 mm (0.61 in)
- Body height 14.9 mm (0.587 in)
- Overall height 14.9 mm (0.587 in)
- Mount spacing 21.3 mm (0.839 in)
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact bridge plate
About measurements
- Mount hole spacing
-
21.3 mm (0.839 in)
Center-to-center distance between mounting holes on the bridge plate.
