M-2289

GUITAR MACHINE HEADS

M-2289

M-2289

Request a quote →

M-2289

Description

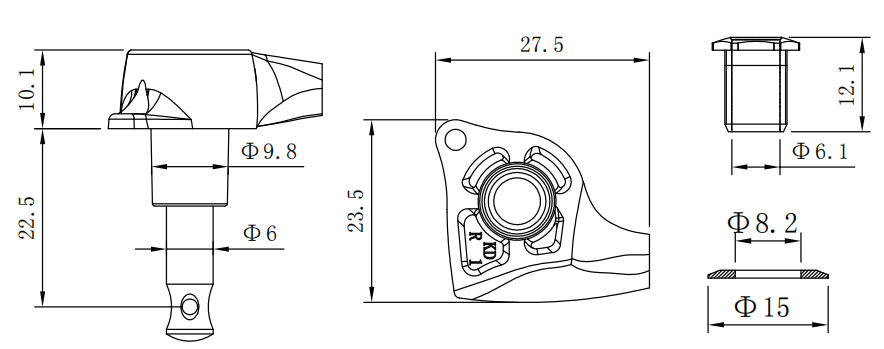

M-2289 is a sealed-gear machine head with φ6 mm post, 22.5 mm post length, φ9.8 mm headstock bore.

Tuning machine specs

Post diameter φ6 mm
Post length 22.5 mm (0.886 in)
Headstock bore φ9.8 mm
Housing width 27.5 mm (1.083 in)
Housing depth 23.5 mm (0.925 in)
Housing height 10.1 mm (0.398 in)
Bushing height 12.1 mm (0.476 in)
Washer outer diameter φ15 mm
Mount style Single-screw mounting tab

Hardware

Material Zinc alloy
Adjustment Tuning adjustment
Finish More colors — see matching swatches

Features

Sealed-gear machine head
Single-screw mounting tab

About measurements

Post diameter

6 mm (0.236 in)

Diameter of the string post where the string is wound.

Headstock bore

9.8 mm (0.386 in)

Recommended headstock hole diameter for the tuner collar.

Configurations
