Request a quote → M-2289SL
M-2289SL

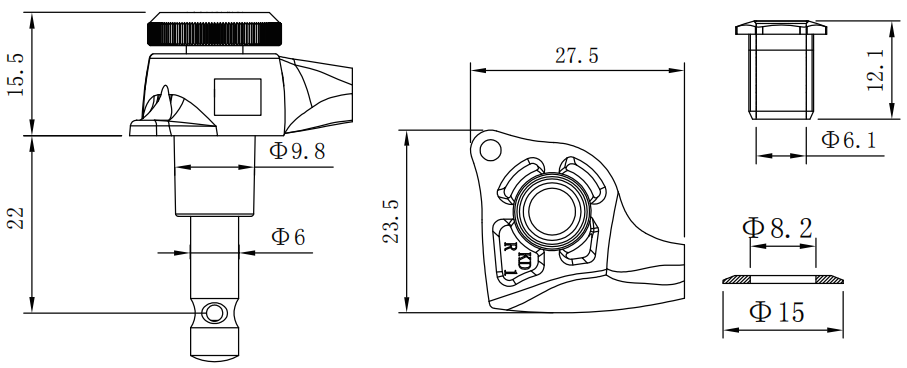

Technical drawingM-2289SL
Description
M-2289SL is a locking sealed-gear machine head with φ6 mm post, 22 mm post length, φ9.8 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 22 mm (0.866 in)
- Headstock bore φ9.8 mm
- Housing width 27.5 mm (1.083 in)
- Housing depth 23.5 mm (0.925 in)
- Housing height 15.5 mm (0.61 in)
- Bushing height 12.1 mm (0.476 in)
- Washer outer diameter φ15 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Rear locking thumbwheel
- Single-screw mounting tab
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9.8 mm (0.386 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
15:1 26:1
