GUITAR MACHINE HEADS
Request a quote → M-7576ASL
M-7576ASL

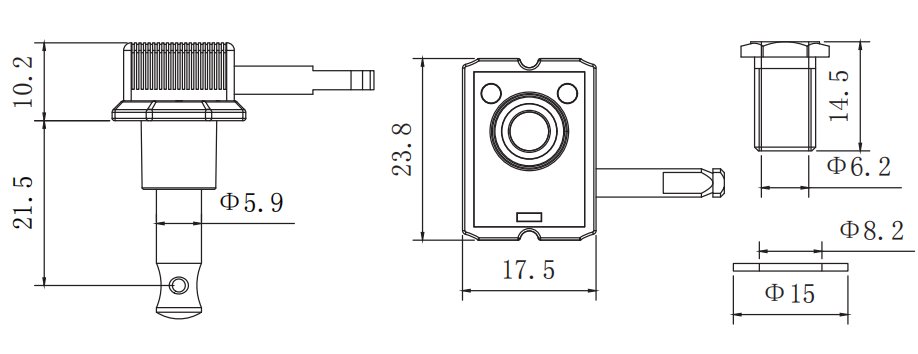

Technical drawingM-7576ASL
Description
M-7576ASL is a sealed-gear machine head with φ5.9 mm post, 21.5 mm post length.
Tuning machine specs
- Post diameter φ5.9 mm
- Post length 21.5 mm (0.846 in)
- Housing width 17.5 mm (0.689 in)
- Housing depth 23.8 mm (0.937 in)
- Housing height 10.2 mm (0.402 in)
- Bushing height 14.5 mm (0.571 in)
- Washer outer diameter φ15 mm
- Mount style Two-screw vintage plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Enclosed gear housing
- Notched rectangular plate
About measurements
- Post diameter
-
5.9 mm (0.232 in)
Diameter of the string post where the string is wound.
Configurations
Gear ratio
15:1 18:1
