GUITAR MACHINE HEADS
Request a quote → M-7576BSL
M-7576BSL

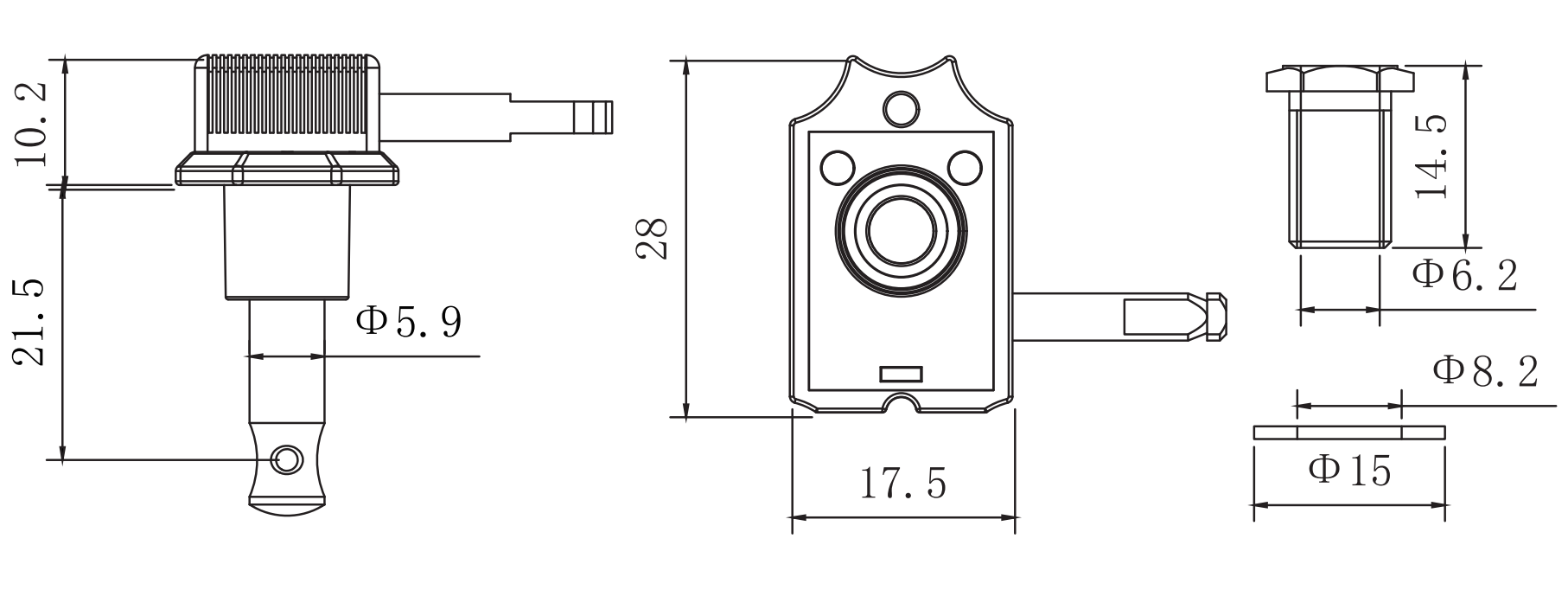

Technical drawingM-7576BSL
Description
M-7576BSL is a sealed-gear machine head with φ5.9 mm post, 21.5 mm post length, φ6.2 mm bushing.
Tuning machine specs
- Post diameter φ5.9 mm
- Post length 21.5 mm (0.846 in)
- Headstock bore φ6.2 mm
- Housing width 17.5 mm (0.689 in)
- Housing depth 28 mm (1.102 in)
- Housing height 10.2 mm (0.402 in)
- Bushing height 14.5 mm (0.571 in)
- Washer outer diameter φ15 mm
- Mount style Two-screw scalloped plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Enclosed gear housing
- Scalloped decorative plate
About measurements
- Post diameter
-
5.9 mm (0.232 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
6.2 mm (0.244 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
