GUITAR MACHINE HEADS
Request a quote → M-8484
M-8484
M-8484
Loading 3D model…
Loading 3D model…
Description
M-8484 is a open-gear machine head with φ6 mm post, 23 mm post length, φ8.1 mm headstock bore.

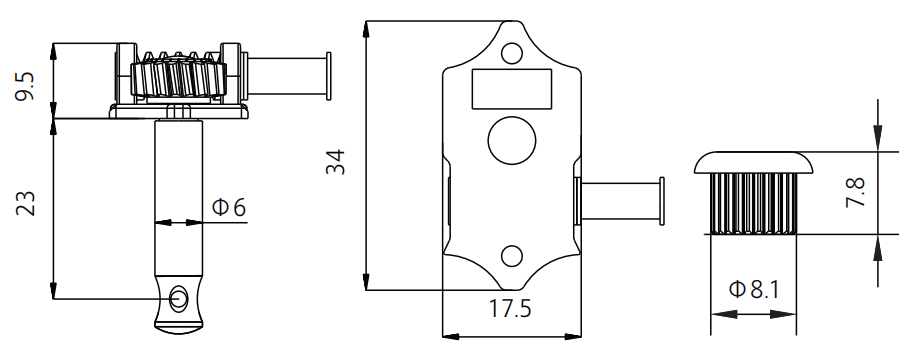

Tuning machine specs
- Post diameter φ6 mm
- Post length 23 mm (0.906 in)
- Housing width 17.5 mm (0.689 in)
- Housing depth 34 mm (1.339 in)
- Housing height 9.5 mm (0.374 in)
- Bushing height 7.8 mm (0.307 in)
- Bushing outer diameter φ8.1 mm
- Mount style Two-screw plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear machine head
- Two-screw plate mount
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
