M-8484A

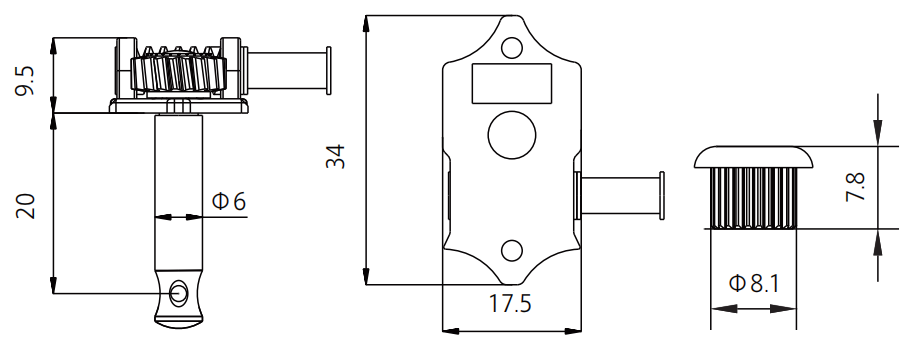

Technical drawingM-8484A
Description
M-8484A is an open-gear machine head with φ6 mm post, 20 mm post length, φ8.1 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 20 mm (0.787 in)
- Headstock bore φ8.1 mm
- Housing width 17.5 mm (0.689 in)
- Housing depth 34 mm (1.339 in)
- Housing height 9.5 mm (0.374 in)
- Bushing height 7.8 mm (0.307 in)
- Mount style Two-screw plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Vintage stamped open housing
- Press-fit ribbed bushing
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
8.1 mm (0.319 in)
Recommended headstock hole diameter for the tuner collar.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
