Description

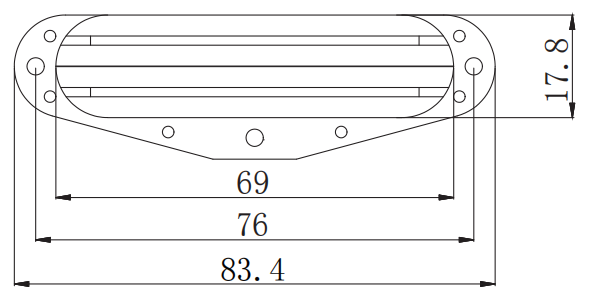

Dual-rail pickup with 83.4 mm overall length, 17.8 mm body width, and 76 mm mount spacing.
Pickup specs
- Overall width 17.8 mm (0.701 in)
- Overall length 83.4 mm (3.283 in)
- Mount spacing 76 mm (2.992 in)
- Reference Body length without tabs 69 mm.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Two parallel horizontal rails instead of individual poles
- Triangular side flange with three holes; end tabs each with three holes
About measurements
- Mount hole spacing
-
76 mm (2.992 in)
Center-to-center distance between mounting holes on the bridge plate.
