Guitar Pickups
Request a quote → P-1012
P-1012
P-1012
Loading 3D model…
Loading 3D model…
Description

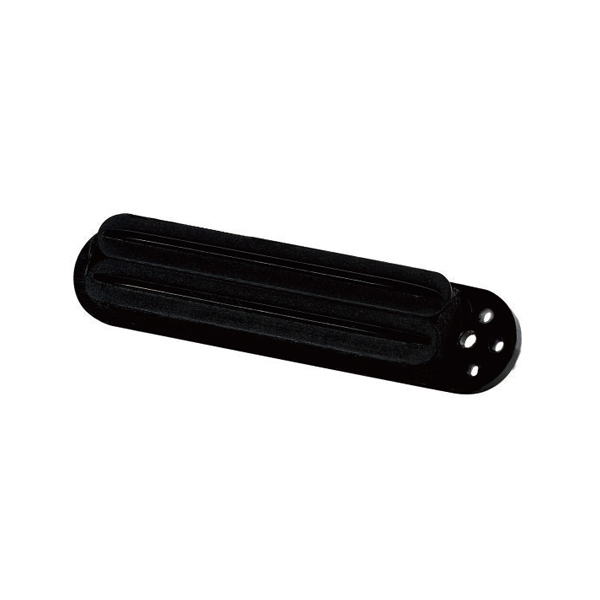

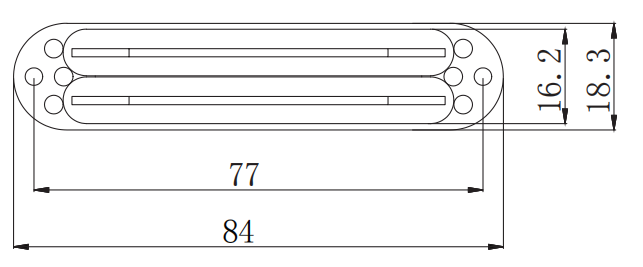

Dual-rail pickup with 84 mm overall length, 18.3 mm plate width, and 77 mm mount spacing.
Pickup specs
- Overall width 18.3 mm (0.72 in)
- Overall length 84 mm (3.307 in)
- Mount spacing 77 mm (3.031 in)
- Reference Inner body width 16.2 mm.
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Two parallel horizontal rails instead of individual poles
- End mounting holes with four smaller holes at each rounded end
About measurements
- Mount hole spacing
-
77 mm (3.031 in)
Center-to-center distance between mounting holes on the bridge plate.
