Description

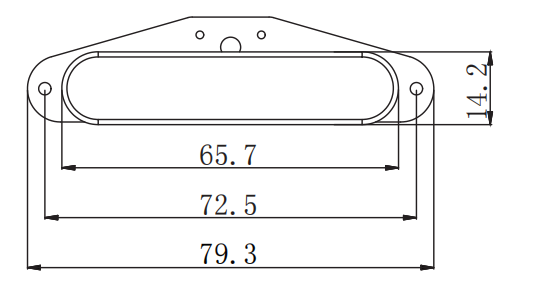

P-1015 is a single-coil baseplate, 79.3 × 14.2 mm, 72.5 mm mount spacing.
Pickup specs
- Overall width 14.2 mm (0.559 in)
- Overall length 79.3 mm (3.122 in)
- Mount spacing 72.5 mm (2.854 in)
- Reference Inner cutout length 65.7 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Oval body with end mounting ears
- Triangular lead-wire tab with three holes
About measurements
- Mount hole spacing
-
72.5 mm (2.854 in)
Center-to-center distance between mounting holes on the bridge plate.
