Guitar Pickups
Request a quote → P-1016
P-1016
P-1016
Loading 3D model…
Loading 3D model…
Description

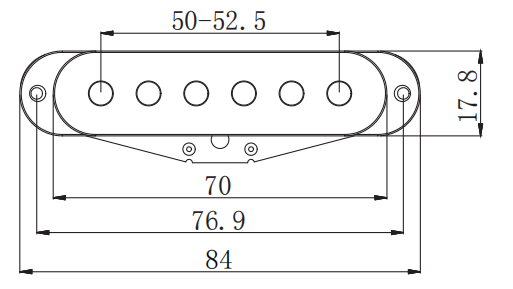

P-1016 is a 6-string single-coil pickup, 84 × 17.8 mm, 76.9 mm mount spacing.
Pickup specs
- String count 6-string
- Overall width 17.8 mm (0.701 in)
- Overall length 84 mm (3.307 in)
- Mount spacing 76.9 mm (3.028 in)
- Reference Body length 70 mm; pole spacing 50–52.5 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Six pole pieces in a single row
- Triangular bridge-mount base tab
About measurements
- Mount hole spacing
-
76.9 mm (3.028 in)
Center-to-center distance between mounting holes on the bridge plate.
