Guitar Pickups
Request a quote → P-1017
P-1017
P-1017
Loading 3D model…
Loading 3D model…
Description

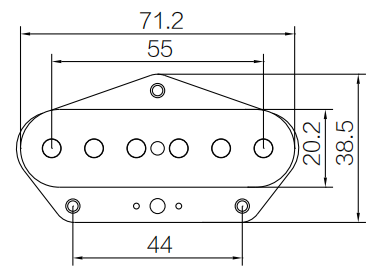

P-1017 is a 6-string Tele bridge pickup, 71.2 × 38.5 mm plate, 44 mm bottom mount spacing.
Pickup specs
- String count 6-string
- Overall width 38.5 mm (1.516 in)
- Overall length 71.2 mm (2.803 in)
- Mount spacing 44 mm (1.732 in)
- Reference Three-hole Tele mount; bobbin width 20.2 mm; pole spacing 55 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tele-style asymmetrical baseplate
- Six pole pieces with three mount holes
About measurements
- Mount hole spacing
-
44 mm (1.732 in)
Center-to-center distance between mounting holes on the bridge plate.
